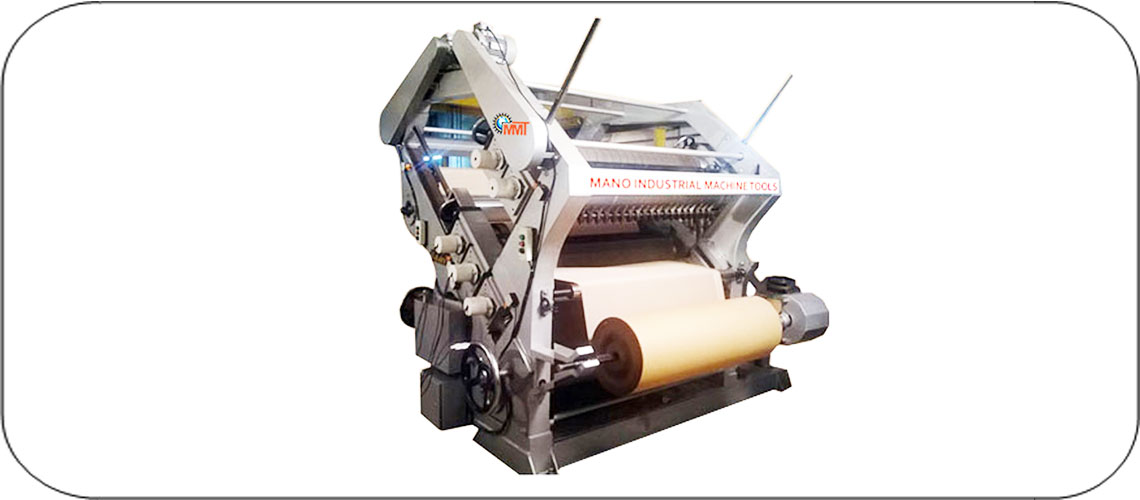

Machine was Fitted with Narrow & Broad flute rolls
Roll Material :- EN – 9 (Forged)
S.Steel Tube heaters ½” Thickness of 11 K.W Each
Pre-Heater: 2 Nos. (3 K.W. Each)
Motor of 7.5 H.P (Crompton Make)
Motor of 2 H.P X 2 Sets for Flute Change Mechanism, , S.S.Gum Tray
Rewinding arrangement with 2 No’s rewinding Shafts, Tool Box.
Hydraulic Lifting Reel Stand With, 2 unwinding Shafts # 2 H.P. motor # Capacity of lifting 1000 Kg loads
| Size | 42" | 45" | 52" | 62" |
|---|---|---|---|---|
| Heating Load | 21 kw | 24 kw | 27 kw | 33 kw |
| Power | 5 HP | 5 HP | 7.5 HP | 10 HP |
| Out put per/min (Bush) | 80 Feet | 80 Feet | 80 Feet | 80 Feet |
| Out put per/min (Bush) | 100 Feet | 100 Feet | 100 Feet | 100 Feet |
