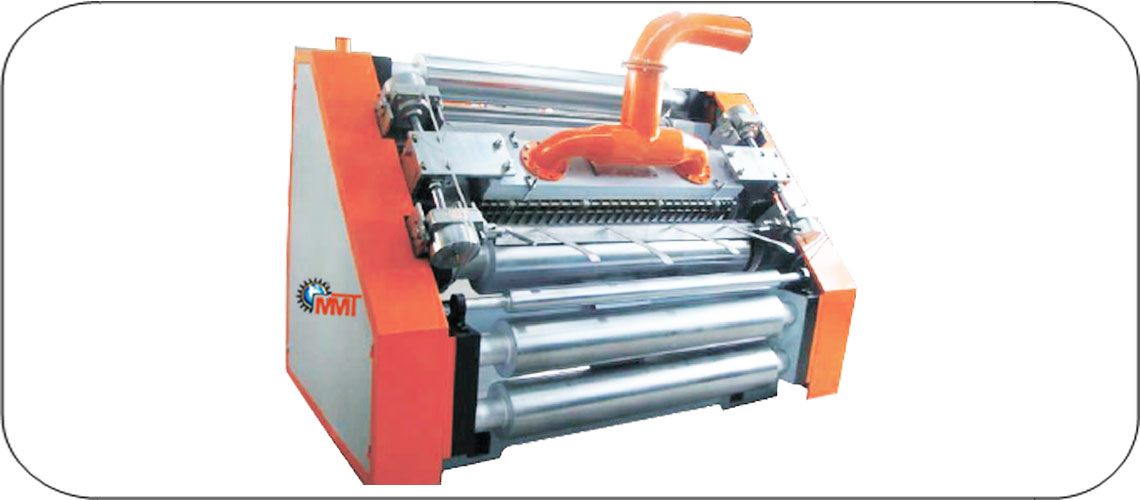

Vacuum suction type pulling cardboard with wind control device
Gluing roller and docter roller are designed to groups guide way slippage load-unload, convenient and swift
Upper flute roller, pressure roller, gluing roller move by pneumatic
The bearing of flute roller and pressure roller adopt high temperature resistant lubrication grease
Glue amount control through adjust the gap between gluing roller and docter roller by motorized control (or manual control option)
Adjusting gluing width by manual (motorized or computer control options)
Flute roller diameter : Φ295mm adopts 48CrMo high quality alloy steel, with heat treatment, hardness HRC50-55, surface do ground finish and hard chrome plated
| Max Working Width | 1400 | 1600 |
|---|---|---|
| Design Speed | 80m / min | 80m / min |
| Economy Speed | 60m / min | 60m / min |
| Application Medium Paper | 80gsm - 170gsm | 80gsm - 170gsm |
| Working Air Pressure | 0.6 - 0.9 Mpa | 0.6 - 0.9 Mpa |
| Total Power | About 50kw | About 50kw |
| Flute Roller Diameter | 320 mm | 320 mm |
