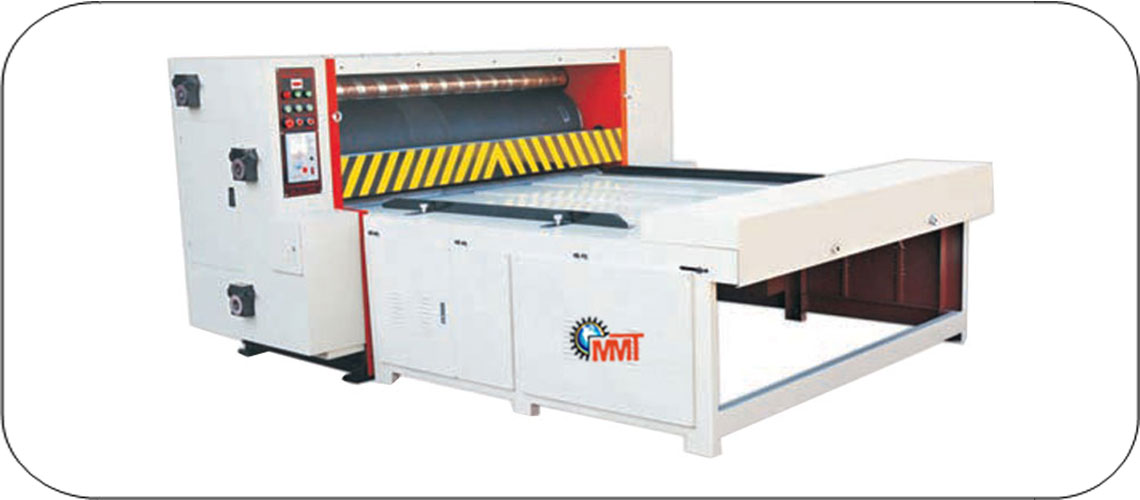

Manual chain type paper, one time slot, cutting Angle, indentation, drilling.
Feed speed per hour 4000 pieces, die cutting accuracy ±1 mm.
Phase structure of micro gear clutch manual adjustment, quick adjustment boot downtime.
Electroplating paper round of paper, in case the crush board, increase the feeding accuracy.
Caterpillar high strength engineering plastics, manic sound low, durable
| Model | Max feeding size (mm) | Min feeding size (mm) | Board feeding thickness (mm) | Main Motor Power(kw) |
|---|---|---|---|---|
| MQJ-1800B | 1800x1350 | 300x600 | 1-8 (3~5) | 4.0 |
| MQJ-2000B | 2100x1350 | 300x600 | 1-8 (3~5) | 5.5 |
| MQJ-2200B | 2000x1600 | 400x600 | 1-10 (3~7) | 7.5 |
| MQJ-2400B | 2500x1600 | 400x700 | 1-10 (3~7) | 7.5 |
| MQJ-2500B | 2500x1800 | 500x700 | 1-10 (3~7) | 11 |
| MQJ-3000B | 3000x1800 | 500x700 | 1-10 (3~7) | 15 |
