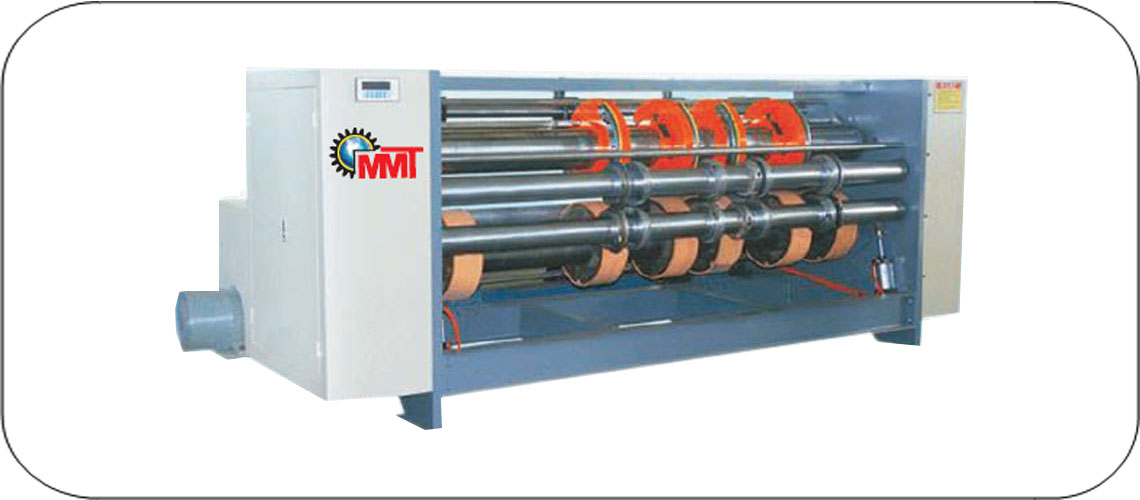

This machine adopts Die-cutting style to replace the traditional slotting style; This new and synthetically equipment can finish auto slotting,corner-slicing,linerolling, paper-dividing at once
Adopts exported cambered saw-tooth knife,making die-cutting surface smooth and without burr
The cushion roll adopts mechanical cam path longitudinal moving (40mm) structure.
The whole machine adopts Oldham coupling structure and Oil-spraying lubrication with steady drive and prolonged gear service life. Mold slice mutually number to control dynamic
adjustment for die-cutting phase with the scale showing the data.
All the transmission axle and roller are made by the high-quality steel; plated with rigid chrome and grinded surface.
All the machine bearing was used Harbin seal ball bearing, which can guarantee the machine running steady.
| Model Numbers | 1400*2200 | 1400*2400 |
|---|---|---|
| Over The Paper Area | 1400*2000mm | 1400*2200mm |
| Slice the cape depth | 300 | 300 |
| Working speed (pieces/min) | 0-60 | 0-60 |
| Way of Transmission | Gear Drive | Gear Drive |
| Power | 4 kw | 4 kw |
