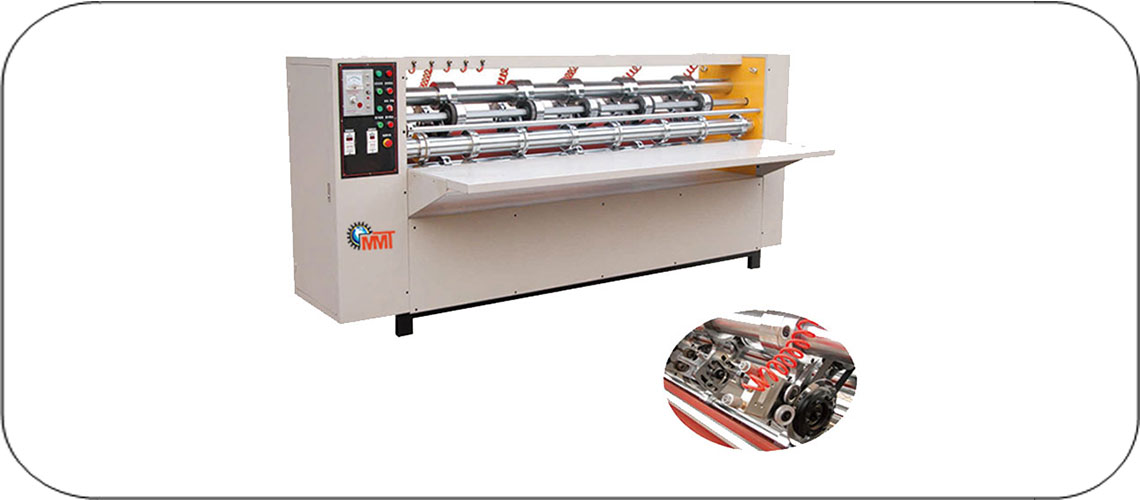

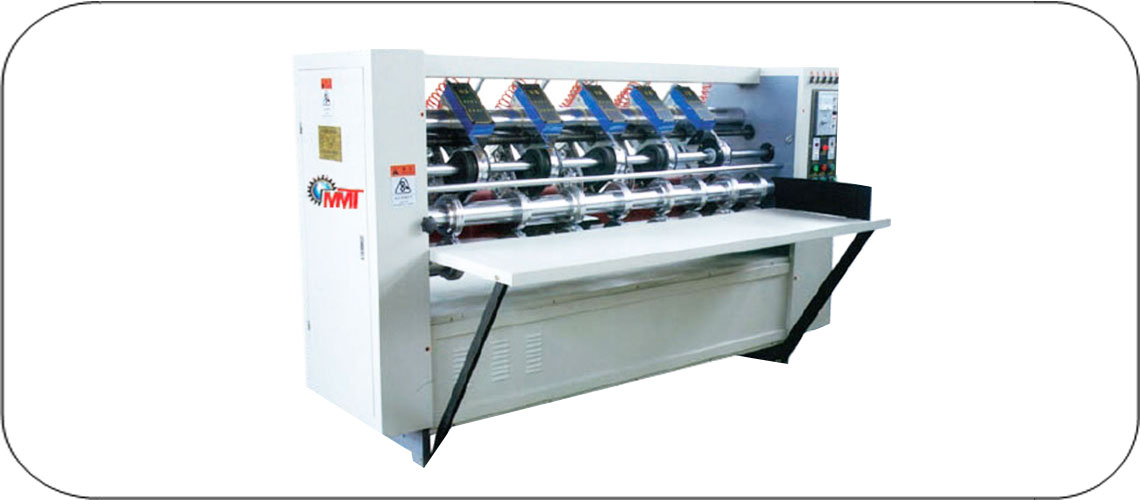

Pre-pressed paper feeding ensures the stable paper transmit
Thin edge (about 1mm thickness) slitting with automatic and manual grindstone grinding to keep edge sharp and make slit paper smooth and tidy all times
Press lines on slit pre-pressed paper board ensure the original lines without crack
The thin edge slitter used for corrugated board production line can be provided.
| Model Width of Paper(mm) | 2000 | 2200 | 2500 |
|---|---|---|---|
| The most speed of paper(m/min) | 141 | 141 | 141 |
| Slitting cutting | 3-5 | 3-5 | 3-5 |
| Min. Press line width | 200mm | 200mm | 200mm |
| Min. Creasing width | 200mm | 200mm | 200mm |
| Outer radi us of thin round edge | 260mm | 260mm | 260mm |
| Thickness of thin round edge | 1 mm | 1 mm | 1 mm |
| Power(kw) | 4 Kw | 4 Kw | 4 Kw |
| Weight (kg) | 2000 Kgs | 2000 Kgs | 2300 Kgs |
